Adjustable foot - mild steel press steel Discounts Apply !
We are now on Xmas shut down & re-open 6th Jan 2025. All orders placed should be sent out on Jan 6th ( Rollers will Longer ) For quotes or enquiries, email or Tel: 07895-889457. Wishing you all a very Happy Xmas & New Year!
In Stock: 288

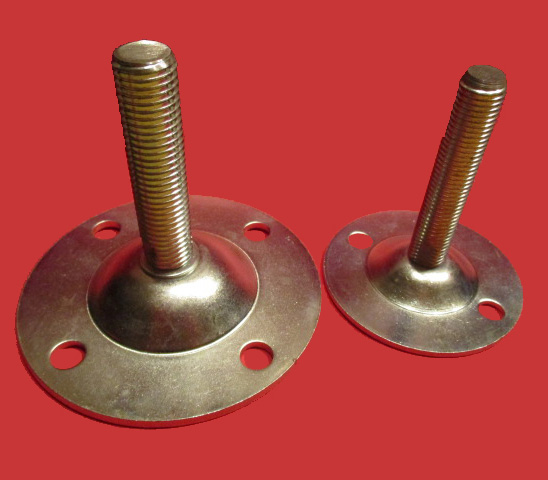

Adjustable foot - mild steel press steel

Mild steel Zinc Plated adjustable with Pressed steel  base. These feet are excellent value for money and are provided with a spanner slot 13mm across the flats.

All goods are in stock for next working day delivery.




Stem diameter        (D1) = 16mm
Base height              (D2) = 10mm
 Base diameter           (D) = 85mm
 Stem length             (D4) = 150mm
Minimum height      (D3) = 20mm
Articulation angle   (D5) = 5 degrees
Spanner Slot                       = 13mm
85mm bolt hole base        = 65mm





Stem: Zinc Plated Mild steel
Base: Zinc Plated Mild steel
Foot load rating =  1000kgKg



  1. Stem diameter (D1) - 16mm only
  2. Stem length (D4) - 150mm
  3. Base diameter (D) - 85mm
  4. Base colour:  Zinc
  5. Base type:Bolt/Down
  6. Additional Locking Nuts? - Select additional locking nut

These adjustable feet are mainly used on conveyor systems and larger tables and food machinery where cost is an important consideration.







Price: £11.15


Refer to diagrams below for feet and roller dimensions
Use menu on left to select sizes
